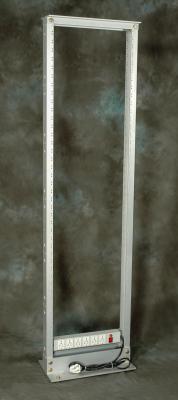

Produced in sizes 36U to 52U,two Posts Racks are typically used where there are floor space constraints.These are constructed out of extruded aluminium C sections locked together on to and bottom using angles. The bottom angle has provision to firmly anchor the Rack to the floor using grouting bolts in case of concrete flooring or hexagonal bolts in case of false flooring.M6 tapped holes are provided on the vertical posts for mounting patch panels, switch etc. A cable routing ladder can be fixed on top of the Rack, if required. provision is available to mout vertical cable routing channels on either side of the vertical posts. The size of this can vary depending upon the number of cables to be routed. The Rack has its dedicated Power Distrubution Unit.The Rack has an anodised finish with lacquer coating. It is flat packed for site assembly.

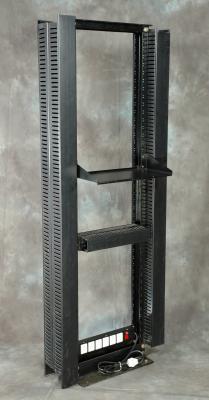

This is the Series 59 and is similar to the Series 49 Two Post Aluminum Rack. In this case,the vertical mount posts are fabricated out of 3 mm thick sheet steel. All other features are identical to the Series 49. Finish available is Powder Coated RAL 9005 or RAL 7035. Available sizes are 36U to 52U.

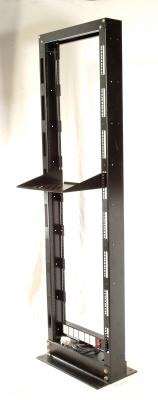

Especially suitable for smaller networks requiring low density of cables, this two post Rack is made of 2 mm thick sheet steel. The vertical posts has square punched holes to receive cage nut sets. This has an inbuilt cable management system for low density of cables. Additional vertical cable management systems can be installed, if required. Produced in sizes 36U to 52U in Powder Coated finish. Colour options are RAL 9005 and RAL 7035.
